Simba Junior (Mini)

Ring Drilling Machine - Simba Junior (Mini), Long Hole Drill Machine

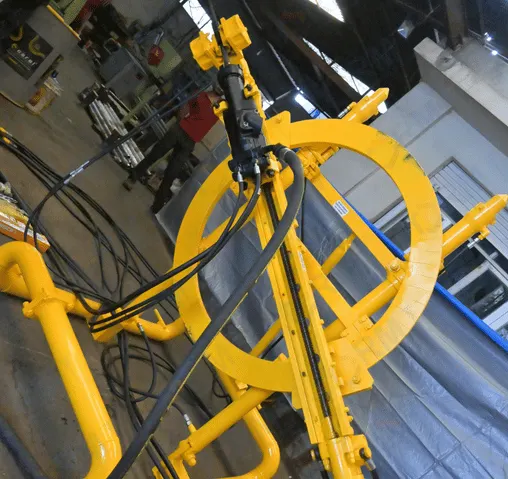

Simba Junior (Mini) is designed keeping in mind the small working area that few mines can have. The small mines with a radius of 2.4 meters can use this variant Simba Junior (Mini). Rest all is the same and only the width and the height of the ring frame are smaller to fit in the mines with a small radius. Like Simba Junior standard and lateral movement variant, this Simba Junior (Mini) also know as ring drilling machine or long hole drill machine comes with RMT 120F Drifter, Feed Beam, Cradle, Guide Rails, Column Bar, Drill Steel catcher, Remote Control, 5 ltr. Airline lubricator etc.
Simba Junior Mini - Mini Simba Exporter, Atlas Copco Simba Junior Manufacturer
Simba Junior Mini - Mini Simba Exporter, Atlas Copco Simba Junior Manufacturer
Model Simba Junior (Mini)
Weight 650 kg 1433 lb
Pneumatic drifter RMT 120F
Hole diameter 34 – 64 mm 1.3 – 2.5″
Drill rod size R32, R38, T38
Drill rod length 1.20 metre 4 ft
Drilling length 25 mtr. max. 82 ft
Air consumption 400 cfm 189 l/s
Drilling rate 1 meter in 4 minutes
Feed beam Screw feed type RMT 46 (BMS 46)
Rod catcher Pneumatic type RMT 10 (BSP 10)
Ring size 1200 mm 47"
Skid frame 3" Pipe
Dimension (L x W x H) 1500 x 1250 x 2300 mm 59 x 49 x 91"
Column bar height Closed – 2200 mm, Open – 3700 mm Closed – 87″, Open – 146″

What is good about it?

  • 360° rotation for convenient drilling at any angle
  • Automatic rod clamp for easy rod handling
  • Drifter directional control with reverse / forward
  • Feed motor with reverse / forward direction control
  • Water connection for hold flushing
  • Integrated oil lubricator and oil flow control
  • Automatic rod clamp for easy rod handling
  • Water connection for hole flushing

Where it is used?

  • Percussion drill machine for tunneling
  • Drifting & long-hole drilling
  • Cable bolting for roof supports
  • Works in 3-meter height
Download Product Flyer

Accessories

Accessories

Spare Parts

Spare Parts
