Simba Junior (Lateral)

Long Hole Drill Machine

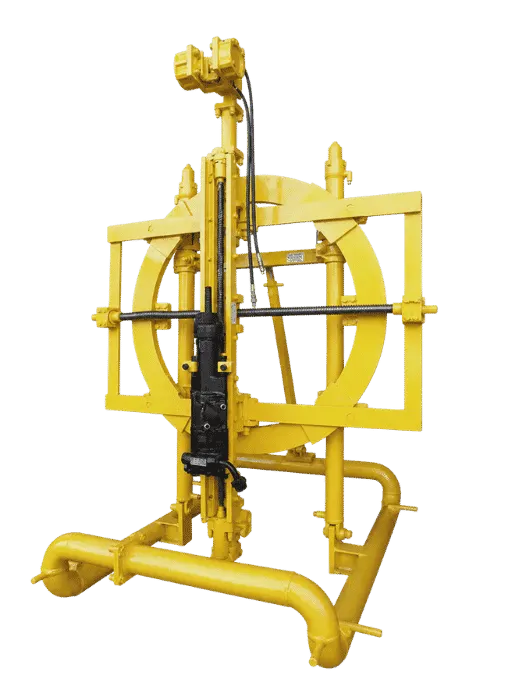

Simba Junior with lateral movement is another variant of Simba Junior that RMT manufactures. Lateral movement of feed beam by manual feed screw is made possible to allow the feed beam to travel in either direction up to 550 mm from the center. long hole drill machine facilitates doing upward hole at 3 positions without shifting the complete machine. It is mostly used in underground mines and tunnels to drill with 360° rotation for drilling at any angle. Mines with a radius of 3 meters can easily use this. Collapsible type mounting is done on a skid frame, made of hollow mild steel pipe. The entire unit can be assembled and dismantled in underground mines itself in minimum time. RMT 120F Pneumatic Drifter, Feed beam, and Rod catcher is mounted on a ring frame to tilt the full system in all direction.
Simba Junior Lateral - Atlas Copco Simba Junior, Long hole Drilling machine Exporter
Simba Junior Lateral - Atlas Copco Simba Junior, Long hole Drilling machine Exporter
Model Simba Junior (Lateral)
Weight 1050 kg 2315 lb
Pneumatic drifter RMT 120F
Hole diameter 34 – 64 mm 1.3 – 2.5″
Drill rod size R32, R38, T38
Drill rod length 1.20 metres 4 ft
Drilling length 25 mtr. max. 82 ft
Air consumption 400 cfm 189 l/s
Drilling rate 1 meter in 4 minutes
Feed beam Screw feed type RMT 46 (BMS 46)
Rod catcher Pneumatic Type RMT 10 (BSP 10)
Ring size 1500 mm 59"
Skid frame 4" Pipe
Dimension (L x W x H) 1780 x 1550 x 2600 mm 70 X 61 X 102"
Column bar height Closed – 2200 mm, Open – 3700 mm Closed – 87″, Open – 146″

What is good about it?

  • 360° rotation for convenient drilling at any angle
  • Automatic rod clamp for easy rod handling
  • Drifter directional control with reverse / forward
  • Feed motor with reverse / forward direction control
  • Water connection for hold flushing
  • Lateral movement for parallel drilling
  • Integrated oil lubricator and oil flow control
  • Automatic rod clamp for easy rod handling
  • Water connection for hole flushing

Where it is used?

  • Percussion drill machine for tunneling
  • Drifting & long-hole drilling
  • Cable bolting for roof supports
  • Works in 3-meter height
