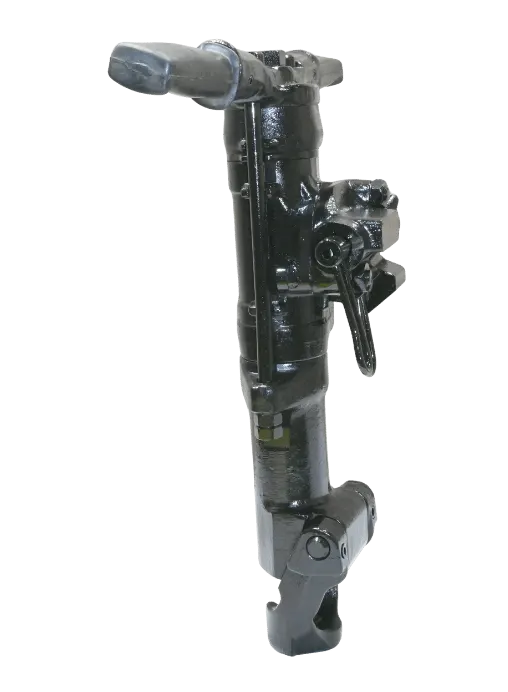

RMT 571 Pneumatic Rock Drill

RMT 571 suits smaller jobs owing to its lightweight. It is a very low-maintenance drill. Spares are easily available. It has a blower which ensures deep hole cleaning.
RH 571 RMT 571 RH571 RH 571 - Sinker Drill Manufacturer, BBD12T, RH 571, Sinker Drill Exporter, Pneumatic Drill Exporter
RH 571 - Sinker Drill Manufacturer, BBD12T, RH 571, Sinker Drill Exporter, Pneumatic Drill Exporter
Model # RMT 571
Weight 18 kg 39 lb
Length 510 mm 20"
Hole range 28 mm - 34 mm 1.10" - 1.33"
Hole depth 6 metres 19.6 ft
Air pressure 6 bar 87 psi
Air consumption 39 l/s 83 cfm
Blows per minutes 2100
Revolutions 190 rpm
Piston dia 55 mm 2.16 "
Piston stroke 60 mm 2.36 "
Air inlet (BSP) 19 mm ³/₄"
Shank size - 8311 0301 29 22 x 108 mm ⁷/₈" x 4¼"

What is good about it?

  • Low weight with lots of power
  • Forged steel body
  • High Penetration rate
  • Robust Rifle Bar rotation mechanism and high impact energy
  • Built in air flushing to ensure drill chipping does not allow jamming

Where it is used?

  • Smaller Jobs - Bench / Secondary drilling
  • Smaller Jobs - Smooth Blast drilling
  • For drilling of narrow faces, in poor footing ground
  • For secondary drilling and other light jobs
