Spare Parts for RMT 12D - Pneumatic Rock Drill

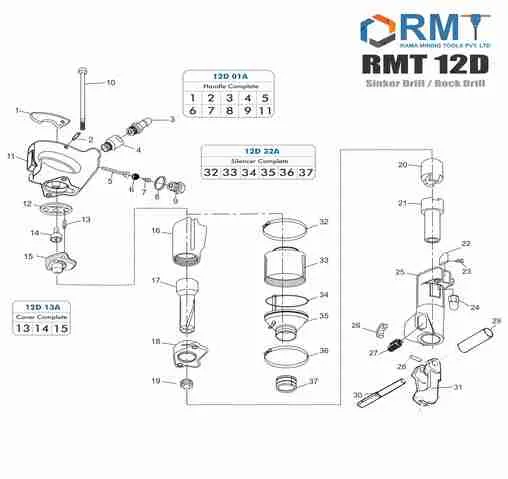

RMT 12D - Pneumatic Rock Drill
RMT 12D - Pneumatic Rock Drill
Handle Complete
RMT Part #
12D (A) (1-9, 11)
Ref Part #
3115 2483 80
Handle Complete
Throttle Lever
RMT Part #
12D 01
Ref Part #
3111 0002 00
Throttle Lever
Pin - Throttle Lever
RMT Part #
12D 02
Ref Part #
0108 1327 00
Pin - Throttle Lever
Adapter
RMT Part #
12D 03
Ref Part #
9000 0243 00
Adapter
Hose Adapter
RMT Part #
12D 04
Ref Part #
3510 0143 00
Hose Adapter
Valve Pin
RMT Part #
12D 05
Ref Part #
3111 0003 00
Valve Pin
Rubber Ball
RMT Part #
12D 06
Ref Part #
3111 0196 00
Rubber Ball
Conical Spring
RMT Part #
12D 07
Ref Part #
3111 0004 00
Conical Spring
Washer
RMT Part #
12D 08
Ref Part #
3111 0010 00
Washer
Ball Retainer
RMT Part #
12D 09
Ref Part #
3111 0005 00
Ball Retainer
Side Bolt
RMT Part #
12D 10
Ref Part #
3111 0197 00
Side Bolt
Handle
RMT Part #
12D 11
Ref Part #
-
Handle
Main Valve
RMT Part #
12D 12
Ref Part #
3111 0012 00
Main Valve
Cover complete
RMT Part #
12D (A) (13,14,15)
Ref Part #
3111 0013 80
Cover complete
Pin
RMT Part #
12D 13
Ref Part #
0108 3241 00
Pin
Guide Pin
RMT Part #
12D 14
Ref Part #
3111 0014 00
Guide Pin
Valve Cover
RMT Part #
12D 15
Ref Part #
-
Valve Cover
Cylinder
RMT Part #
12D 16
Ref Part #
3111 0015 00
Cylinder
Piston
RMT Part #
12D 17
Ref Part #
3111 0016 00
Piston
Intermediate Part
RMT Part #
12D 18
Ref Part #
3111 0017 00
Intermediate Part
Ratchet Ring
RMT Part #
12D 19
Ref Part #
3111 0019 00
Ratchet Ring
Driver
RMT Part #
12D 20
Ref Part #
3111 0024 00
Driver
Drill Chuck - 22 x 108 mm
RMT Part #
12D 21
Ref Part #
3111 0066 00
Drill Chuck - 22 x 108 mm
Pawl
RMT Part #
12D 22
Ref Part #
3111 0020 00
Pawl
Pawl Spring
RMT Part #
12D 23
Ref Part #
3111 0023 00
Pawl Spring
Side Bolt Nut
RMT Part #
12D 24
Ref Part #
3111 0031 00
Side Bolt Nut
Front Head
RMT Part #
12D 25
Ref Part #
3111 0053 00
Front Head
Buffer Plate
RMT Part #
12D 26
Ref Part #
3111 0056 00
Buffer Plate
Rubber Buffer
RMT Part #
12D 27
Ref Part #
3111 0057 00
Rubber Buffer
Slotted Spring Pin
RMT Part #
12D 28
Ref Part #
0108 1359 00
Slotted Spring Pin
Sleeve
RMT Part #
12D 29
Ref Part #
3115 2481 00
Sleeve
Retainer Pin
RMT Part #
12D 30
Ref Part #
3115 2480 00
Retainer Pin
Drill Retainer
RMT Part #
12D 31
Ref Part #
3115 2475 00
Drill Retainer
