Spare Parts for RMT 120FZ - Pneumatic Drifter

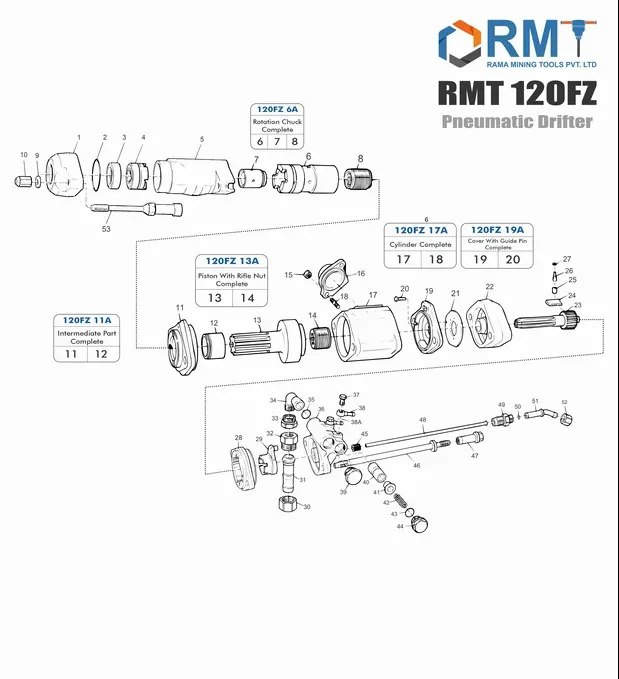

RMT 120FZ - Pneumatic Drifter
RMT 120FZ - Pneumatic Drifter
Cover
RMT Part #
120FZ 01
Ref Part #
3115 2239 00
Cover
O - Ring
RMT Part #
120FZ 02
Ref Part #
0663 6145 00
O - Ring
Stop Ring (Chuck)
RMT Part #
120 03
Ref Part #
3161 0215 00
Stop Ring (Chuck)
Rotation Chuck (Small)
RMT Part #
120 04
Ref Part #
3161 0216 00
Rotation Chuck (Small)
Fronthead
RMT Part #
120FZ 05
Ref Part #
3115 2291 00
Fronthead
Rotation Chuck Comp.
RMT Part #
120 6(A) (6-8)
Ref Part #
3161 0328 80
Rotation Chuck Comp.
Rotation Chuck
RMT Part #
120 06
Ref Part #
-
Rotation Chuck
Rotation Chuck Bushing
RMT Part #
120 07
Ref Part #
3161 0218 00
Rotation Chuck Bushing
Chuck Guide Nut
RMT Part #
120 08
Ref Part #
3115 2108 00
Chuck Guide Nut
Washer
RMT Part #
120FZ 09
Ref Part #
3115 0287 00
Washer
Dome Nut
RMT Part #
120FZ 10
Ref Part #
3115 0286 00
Dome Nut
Intermediate Part Comp.
RMT Part #
120 11(A) (11, 12)
Ref Part #
3161 0819 80
Intermediate Part Comp.
Intermediate Part
RMT Part #
120 11
Ref Part #
-
Intermediate Part
Bushing
RMT Part #
120 12
Ref Part #
3161 0235 00
Bushing
Piston Comp.
RMT Part #
120 13(A) (13, 14)
Ref Part #
3161 0307 80
Piston Comp.
Piston
RMT Part #
120 13
Ref Part #
-
Piston
Rifle Nut
RMT Part #
120FZ 14
Ref Part #
3115 2107 00
Rifle Nut
Nut - Nylock
RMT Part #
120 15
Ref Part #
0291 1114 00
Nut - Nylock
Exhaust Guard (Rubber)
RMT Part #
120 16
Ref Part #
3115 0122 00
Exhaust Guard (Rubber)
Cylinder Comp.
RMT Part #
120 17(A) (17, 18)
Ref Part #
3161 0524 80
Cylinder Comp.
Cylinder
RMT Part #
120 17
Ref Part #
-
Cylinder
Stud - Allen Grub Screw
RMT Part #
120 18
Ref Part #
3161 0468 00
Stud - Allen Grub Screw
Cover Comp.
RMT Part #
120 19(A) (19-20)
Ref Part #
3141 0087 80
Cover Comp.
Cover
RMT Part #
120 19
Ref Part #
-
Cover
Guide Pin
RMT Part #
120 20
Ref Part #
3141 0088 00
Guide Pin
Main Valve
RMT Part #
120 21
Ref Part #
3161 0333 00
Main Valve
Rifle Pin Bearing - Guide
RMT Part #
120 22
Ref Part #
3141 0090 00
Rifle Pin Bearing - Guide
Rifle Bar
RMT Part #
120 23
Ref Part #
3161 0369 00
Rifle Bar
Pawl
RMT Part #
120 24
Ref Part #
3161 0370 00
Pawl
Pawl Pin
RMT Part #
120 25
Ref Part #
3141 0083 00
Pawl Pin
Pawl Spring
RMT Part #
120 26
Ref Part #
3115 0774 00
Pawl Spring
Damper (Rubber)
RMT Part #
120 27
Ref Part #
3161 0525 00
Damper (Rubber)
Ratchet Box
RMT Part #
120 28
Ref Part #
3161 0377 00
Ratchet Box
Pawl Lifting Ring
RMT Part #
120 29
Ref Part #
3161 0378 00
Pawl Lifting Ring
Coupling Nut
RMT Part #
120 30
Ref Part #
9000 0335 00
Coupling Nut
Hose Nipple
RMT Part #
120 31
Ref Part #
9000 0177 00
Hose Nipple
Adapter (Hex)
RMT Part #
120 32
Ref Part #
9000 0485 00
Adapter (Hex)
Adapter - Nut For Air Bend
RMT Part #
120 33
Ref Part #
3000 9922 00
Adapter - Nut For Air Bend
Air Bend
RMT Part #
120 34
Ref Part #
3161 0070 00
Air Bend
O Ring
RMT Part #
120 35
Ref Part #
0663 2132 00
O Ring
Backhead
RMT Part #
120 36
Ref Part #
3141 0093 00
Backhead
Pressure Screw
RMT Part #
120 37
Ref Part #
3161 0820 00
Pressure Screw
Banjo Nipple
RMT Part #
120 38
Ref Part #
3161 0229 00
Banjo Nipple
Brass Washer
RMT Part #
120 38(A)
Ref Part #
0038 1101 00
Brass Washer
Plug - Hex
RMT Part #
120 39
Ref Part #
3161 0069 00
Plug - Hex
Operating Piston
RMT Part #
120 40
Ref Part #
3141 0095 00
Operating Piston
Spring Guide
RMT Part #
120 41
Ref Part #
3141 0096 00
Spring Guide
Pressure Spring
RMT Part #
120 42
Ref Part #
3141 0097 00
Pressure Spring
O Ring
RMT Part #
120 43
Ref Part #
663 2132 00
O Ring
Plug
RMT Part #
120 44
Ref Part #
3141 0098 00
Plug
Rubber Bush - Gasket
RMT Part #
120 45
Ref Part #
3121 0477 00
Rubber Bush - Gasket
Side Bolt
RMT Part #
120 46
Ref Part #
3141 0070 00
Side Bolt
Nut - Side Bolt
RMT Part #
120 47
Ref Part #
3141 0224 00
Nut - Side Bolt
Water Flushing Tube
RMT Part #
120 48
Ref Part #
3161 0376 00
Water Flushing Tube
Adapter
RMT Part #
120 49
Ref Part #
3161 0821 00
Adapter
O Ring
RMT Part #
120 50
Ref Part #
0663 2124 00
O Ring
Hose Nipple - Water
RMT Part #
120 51
Ref Part #
3161 0822 00
Hose Nipple - Water
Coupling Nut
RMT Part #
120 52
Ref Part #
3161 0823 00
Coupling Nut
Side Bolt
RMT Part #
120FZ 53
Ref Part #
3115 2240 00
Side Bolt
