Gear Housing Complete


Wagon Drill Spare Parts Gear Housing Complete

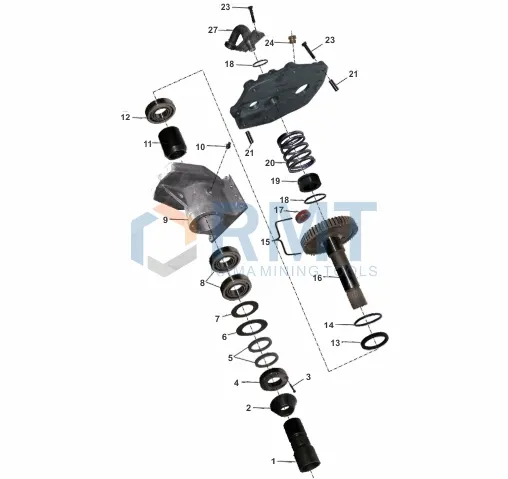

Gear Housing Complete
Description Ref. Part # EV #
Gear Housing Complete - -
Adapter 3161 0893 00 1
Seal Ring 3161 0852 00 2
Screw 0211 1367 00 3
Clamp Ring 3161 0619 00 4
Seal Ring 3161 0753 00 5
Gasket 3161 0622 00 6
Gasket 3161 0621 00 7
Ball Bearing 0504 0602 00 8
Gear Housing 3161 0626 00 9
Grease Nipple 0544 2162 00 10
Spacer Sleeve 3161 0627 00 11
Ball Bearing 0502 2112 00 12
Spacer Ring 3161 0630 00 13
O-Ring 0663 9194 00 14
Spring Complete 3161 0628 80 15
Spindle - 16
Bushing 3161 0755 00 17
O-Ring 0663 3131 00 18
Seal Ring 3161 0634 00 19
Spring 3161 0635 00 20
Parallel Pin 0102 0410 00 21
Cover 3161 0631 00 22
Insert - 23
Screw 0147 1407 00 24
Plug 0686 6103 00 25
Air Inlet Tube 3161 0636 00 26
* Suffix “M” with the Ref. Part # is Modified
