RMT 4123 Spare Parts

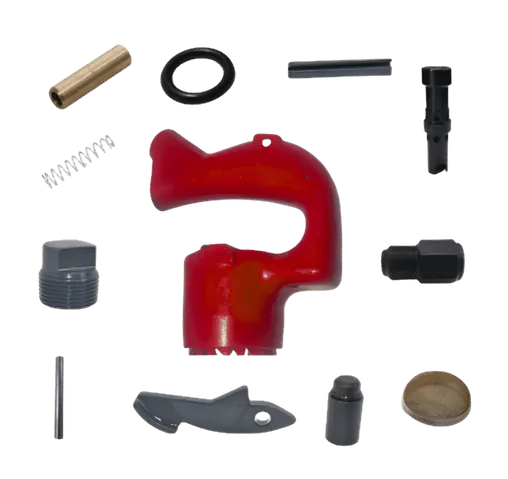

Handle Complete
RMT Part #
4123 (A)
Ref Part #
Z9983830

Handle Complete
Plug - Throttle Valve
RMT Part #
4123 01
Ref Part #
P001873

Plug - Throttle Valve
Spring - Throttle Valve
RMT Part #
4123 02
Ref Part #
P001853

Spring - Throttle Valve
Throttle Valve Complete
RMT Part #
4123 (B)
Ref Part #
P001768

Throttle Valve Complete
Throttle Valve
RMT Part #
4123 03
Ref Part #
-

Throttle Valve
O Ring - Throttle Valve
RMT Part #
4123 04
Ref Part #
P083071

O Ring - Throttle Valve
Tube - Throttle Valve
RMT Part #
4123 05
Ref Part #
P071318

Tube - Throttle Valve
Push Pin
RMT Part #
4123 06
Ref Part #
P070719

Push Pin
Bushing - Push Pin Brass
RMT Part #
4123 07
Ref Part #
P070733

Bushing - Push Pin Brass

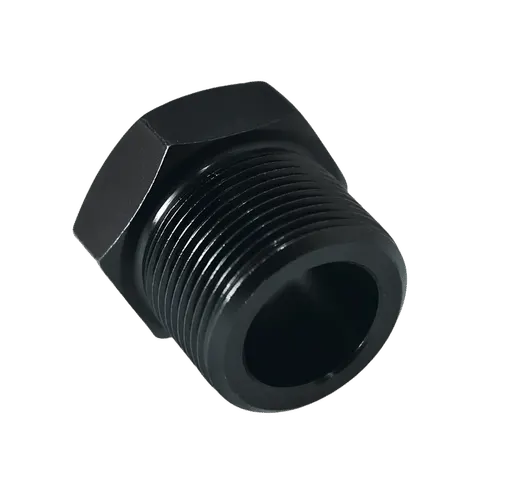

Air Inlet Bushing
RMT Part #
4123 08
Ref Part #
-

Air Inlet Bushing

Pin - Throttle Lever
RMT Part #
4123 09
Ref Part #
A043627

Pin - Throttle Lever
Throttle Lever
RMT Part #
4123 10
Ref Part #
P009818

Throttle Lever
Handle
RMT Part #
4123 11
Ref Part #
-

Handle

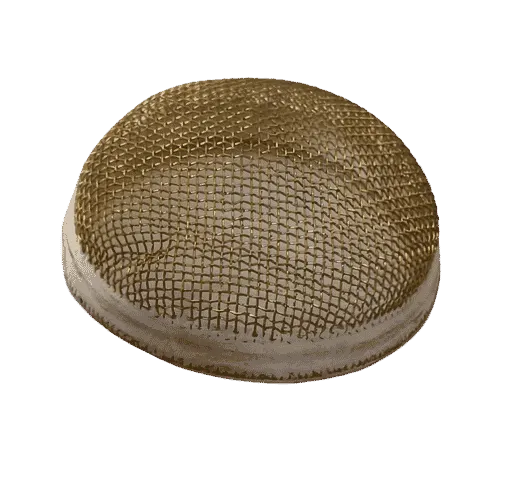

Screen
RMT Part #
4123 12
Ref Part #
P092485

Screen
Valve Case Complete
RMT Part #
4123 (C)
Ref Part #
P077013

Valve Case Complete
Lid - Upper Valve Case
RMT Part #
4123 13
Ref Part #
P071350

Lid - Upper Valve Case
Valve
RMT Part #
4123 14
Ref Part #
P071358

Valve
Valve Case
RMT Part #
4123 15
Ref Part #
P071352

Valve Case
Dowel Pin - Valve Case
RMT Part #
4123 16
Ref Part #
A041797

Dowel Pin - Valve Case
Lid - Lower Valve Case
RMT Part #
4123 17
Ref Part #
P071351

Lid - Lower Valve Case
Piston for 2" or 3" Stroke
RMT Part #
4123 18
Ref Part #
P118662

Piston for 2" or 3" Stroke
Piston for 4" Stroke
RMT Part #
4123 18a
Ref Part #
P118678

Piston for 4" Stroke

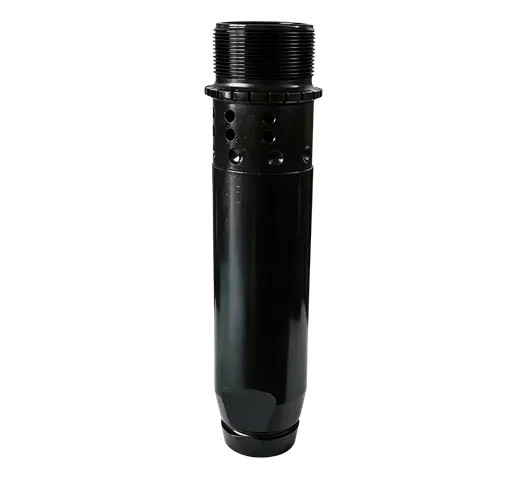

Cylinder (Barrel 2" Stroke)
RMT Part #
4123 19
Ref Part #
-

Cylinder (Barrel 2" Stroke)
Cylinder (Barrel 3" Stroke)
RMT Part #
4123 19a
Ref Part #
-

Cylinder (Barrel 3" Stroke)
Cylinder (Barrel 4" Stroke)
RMT Part #
4123 19b
Ref Part #
-

Cylinder (Barrel 4" Stroke)
Sleeve - Chisel (Hex)
RMT Part #
4123 20
Ref Part #
P001551

Sleeve - Chisel (Hex)
Sleeve - Chisel (Round)
RMT Part #
4123 20a
Ref Part #
P001550

Sleeve - Chisel (Round)
Lock Clip - Collar Lock
RMT Part #
4123 21
Ref Part #
P128247

Lock Clip - Collar Lock
Shield Lock
RMT Part #
4123 22
Ref Part #
P071355

Shield Lock
Retainer Complete
RMT Part #
4123 (D)
Ref Part #
P107243

Retainer Complete
Spring - Retainer
RMT Part #
4123 23
Ref Part #
P070994

Spring - Retainer

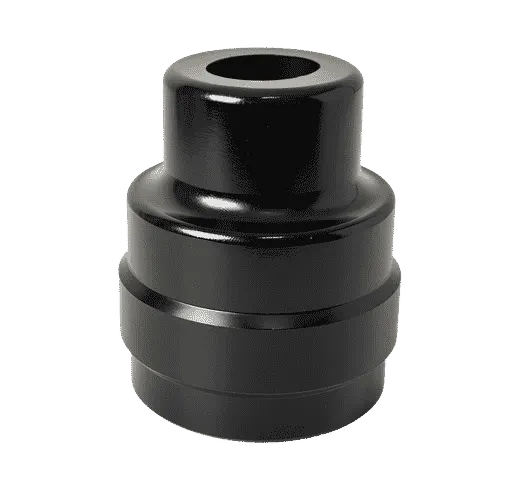

Retainer
RMT Part #
4123 24
Ref Part #
-

Retainer
