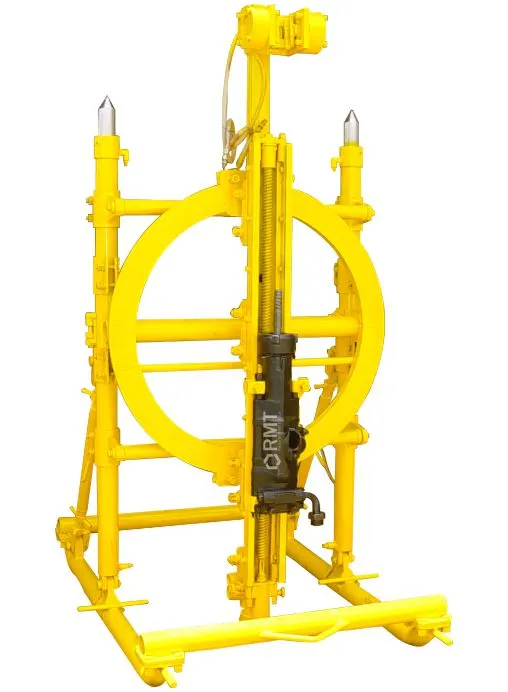

Model # Simba Junior Standard
Weight 1200 kg 2640 lb
Pneumatic Drifter RMT 120F
Hole Diameter 48 – 57 mm 1.9 – 2¼″
Drill Rod Size R32
Drill Rod Length 1.20 Meter 4 ft
Drilling Length 25 Mtr. max. 82 ft
Air consumption 400 cfm 189 l/s
Drilling Rate 1 meter in 4 minutes
Feed Beam Screw Feed Type RMT-46
Rod Catcher Pneumatic Type RSP-10
Ring Size 1500 mm 59"
Dimension (L x W x H) 1780 x 1550 x 2600 mm 70″ X 61″ X 102″
Column Bar Height Closed – 2200 mm, Open – 3700 mm Closed – 87″, Open – 146″

What is good about it?

  • 360° rotation for convenient drilling at any angle
  • Automatic rod clamp for easy rod handling
  • Drifter directional control with reverse / forward
  • Feed motor with reverse / forward direction control
  • Water connection for hold flushing
  • Lateral movement for parallel drilling
  • Integrated oil lubricator and oil flow control
  • Automatic rod clamp for easy rod handling
  • Water connection for hole flushing

Where it is used?

  • Percussion drill machine for tunnelling
  • Drifting & long hole drilling
  • Cable bolting for roof supports
  • Works in 3 meter height

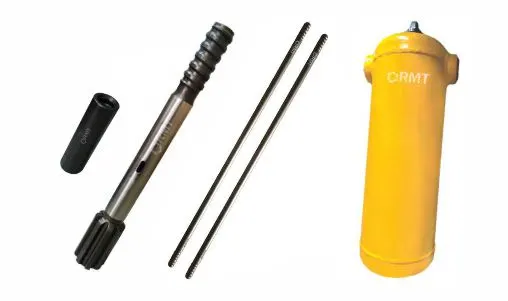

Accessories

Accessories

Spare Parts

Spare Parts
