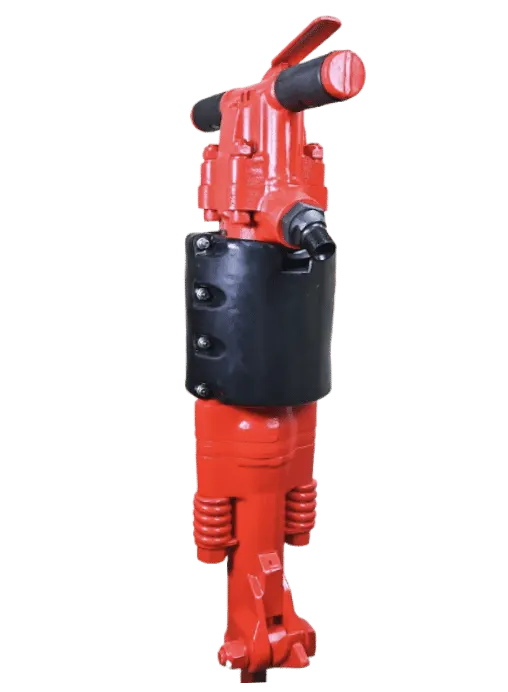

RMT 1230 - Pneumatic Breaker

The 60 lb class Pneumatic breaker RMT 1230 is most suitable for challenging works such as cutting tarmac, breaking reinforced concrete, frozen ground, non-consolidated rock, boulders, pavement, asphalt, etc. It is used for demolition, construction, renovation, road construction, bridgework, and repairs. All the daily service points are easily accessible so it is really fast and easy to maintain the hammer.
RMT 1230 RMT 1230 RMT 1230 RMT 1230
RMT 1230
Model # RMT 1230
Weight with silencer 30 kg 66 lb
Weight without silencer 29 kg 64 lb
Length 660 mm 26"
Air pressure 6 bar 87 psi
Air consumption 30 l/s 64 cfm
Blows per minute 1350
Piston dia 60.3 mm 2.40″
Piston stroke 140 mm 5.50″
Air inlet (NPT) 19 mm ³/₄"
Shank size (standard) - T022159 32 x 160 mm 1¼” x 6¼”
Shank size (option) - T022158 28 x 160 mm 1⅛" x 6¼”
Retainer type Latch
* Available with or without muffler/silencer.

What is good about it?

  • Forged latch type retainer
  • Integral oil chamber in backhead
  • Easy access to daily service points
  • Four-bolt-backhead-withstands rugged use
  • “Goose neck” Air Inlet Swivel for easy handling and positioning

Where it is used?

  • Tough construction and plant maintenance work
  • Medium to heavy concrete demolition
  • Breaking reinforced concrete, heavy road work & general demolition
