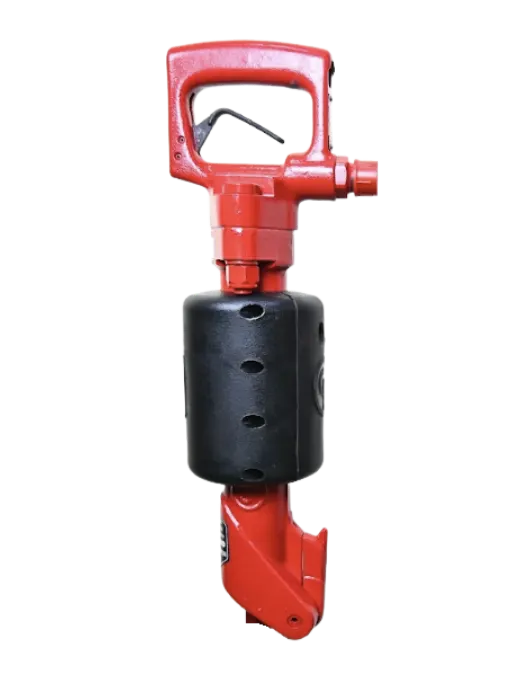

RMT CD22 - Clay Digger

RMT CD22 Clay Digger - Pneumatic Digger

RMT CD22 is mostly used for light to medium clay digging, mining, and soft tunneling applications. It is also used in exterior wall renovations, breaking hard rock in tunnels or mines. Because of its slim design, it can be used in tight spaces. Despite its low weight, it provides very powerful blows at a relatively low frequency and it can be used vertically, horizontally, or overhead. This Clay Digger has an exhaust port at the top so the whole hammer can be buried almost to the handle. It comes with a screwcap retainer with a round chuck and a sound-reducing muffler.
FL 22 FL 22 FL 22 CD 0022 - Clay Digger
CD 0022 - Clay Digger
Model # RMT CD22 Clay Digger
Weight 11 kg 24 lb
Length 495 mm 19.5"
Air pressure 6.2 bar 90 psi
Air consumption 21 l/s 45 cfm
Blows per minute 1320
Piston dia 40 mm 1.60"
Piston stroke 44 mm 1.73"
Air inlet (BSP thread) 19 mm ¾"
Shank size (Sq) - 8900 0001 24 19 x 82.5 mm ¾" x 3¼"
Retainer type Screw cap

What is good about it?

  • Technically equivalent to FL 0022 with 100% parts interchangeability
  • High power to weight ratio
  • Slim and compact design makes it easy to carry
  • Heat treated steel component for durability

Where it is used?

  • Mining
  • Soft tunneling
  • Light to medium clay digging applications
  • Overhead work and light demolition
